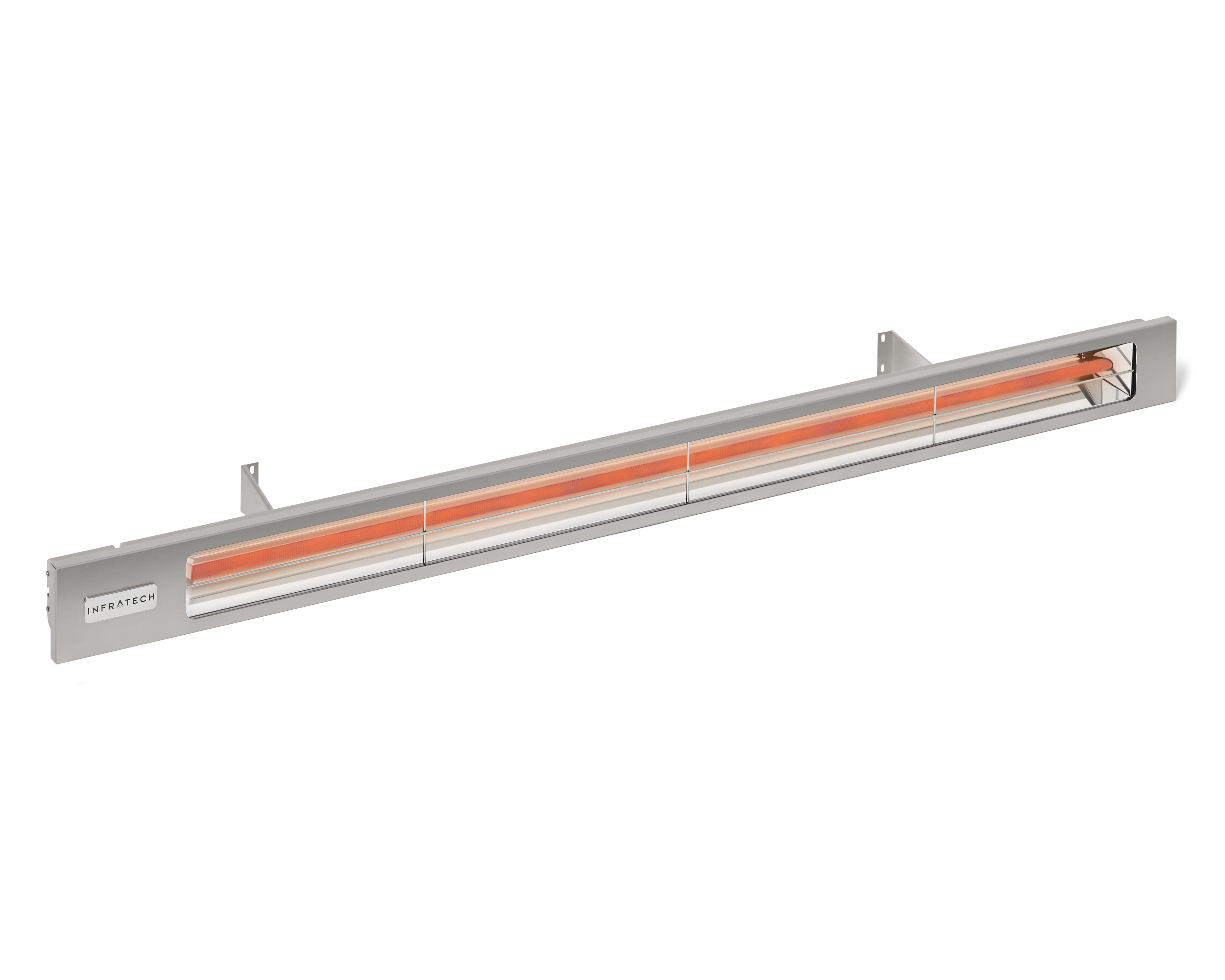

Slim Line Series Infratech Heaters
sl-series slimline single element heaters

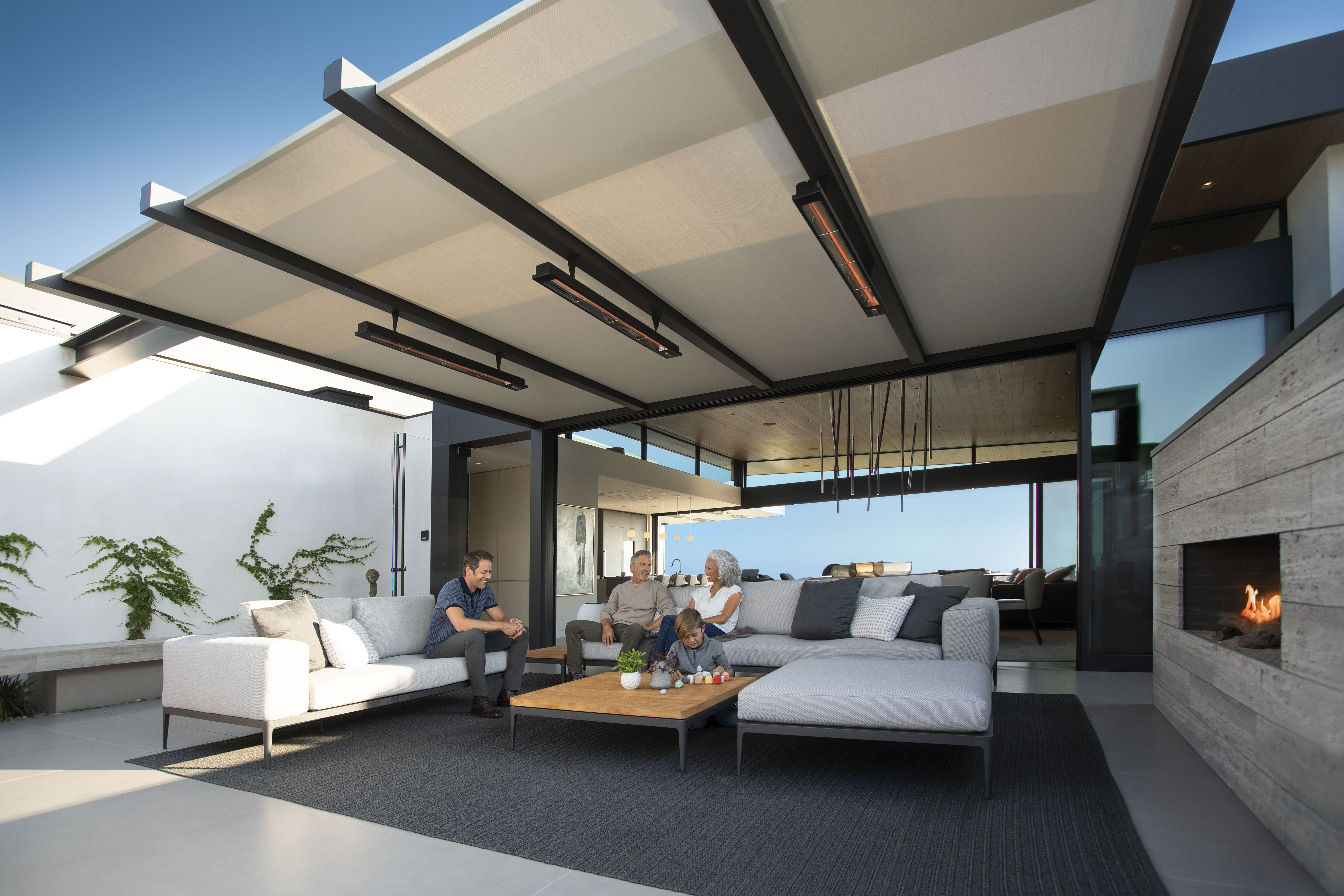

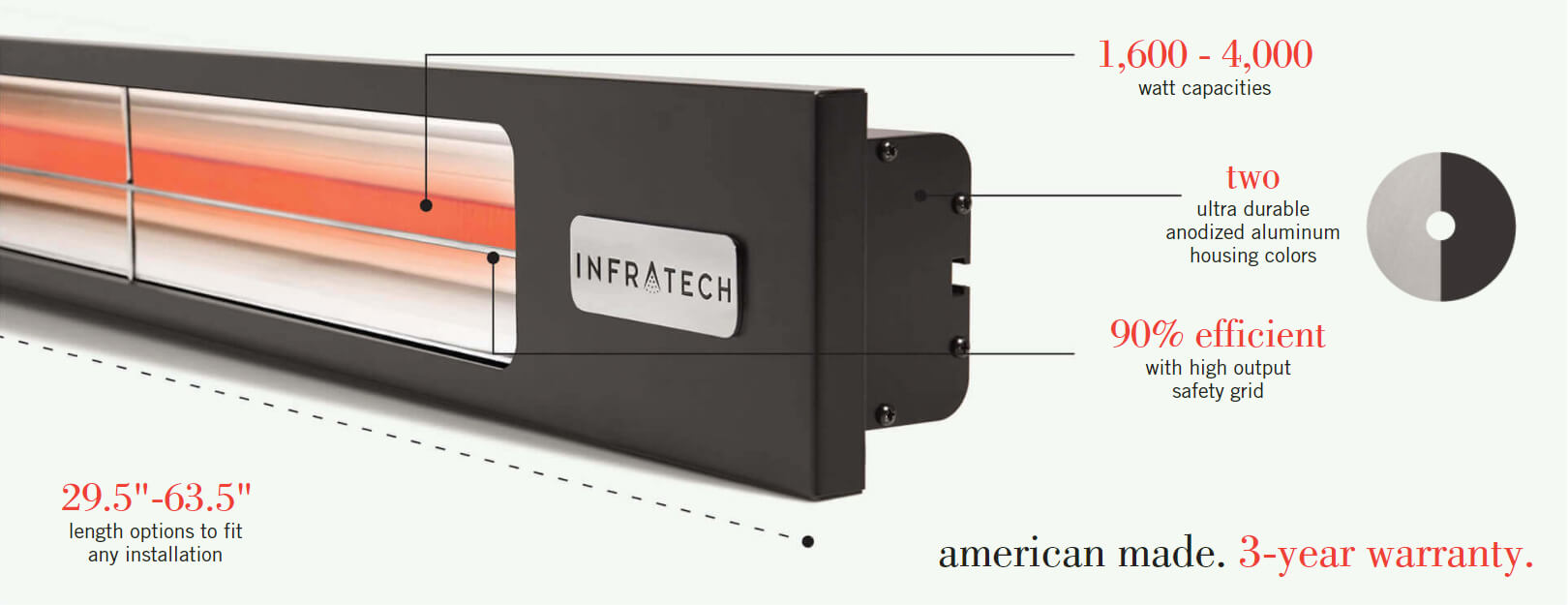

With crisp, modern styling, an anodized aluminum housing and narrow profiles, Slimline heaters virtually disappear into the surrounding décor.
color options

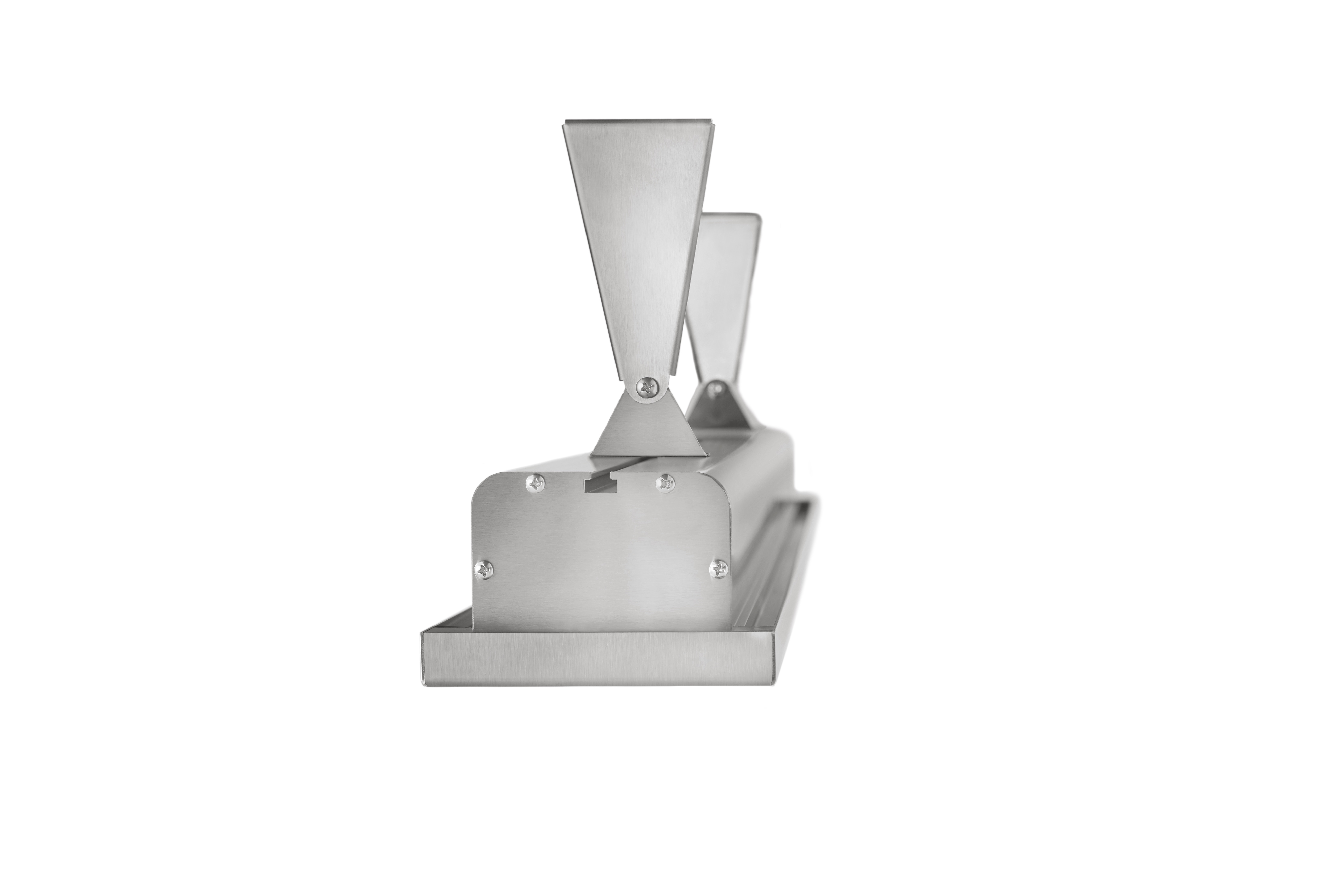

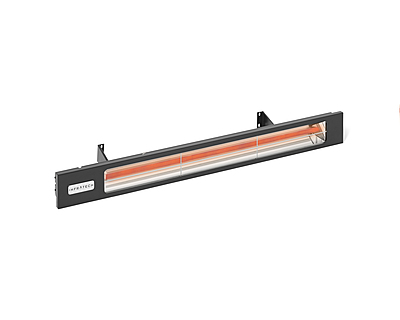

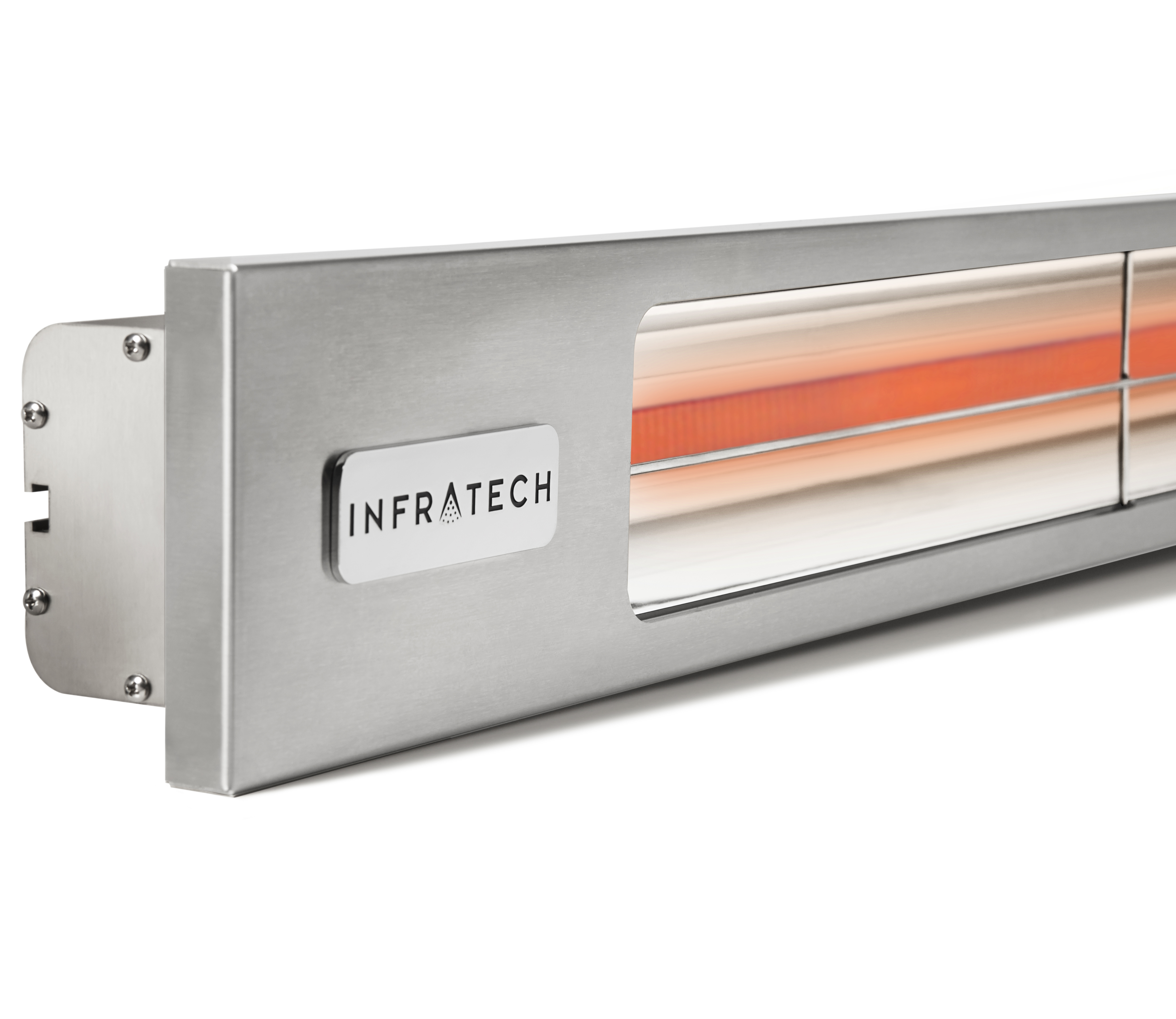

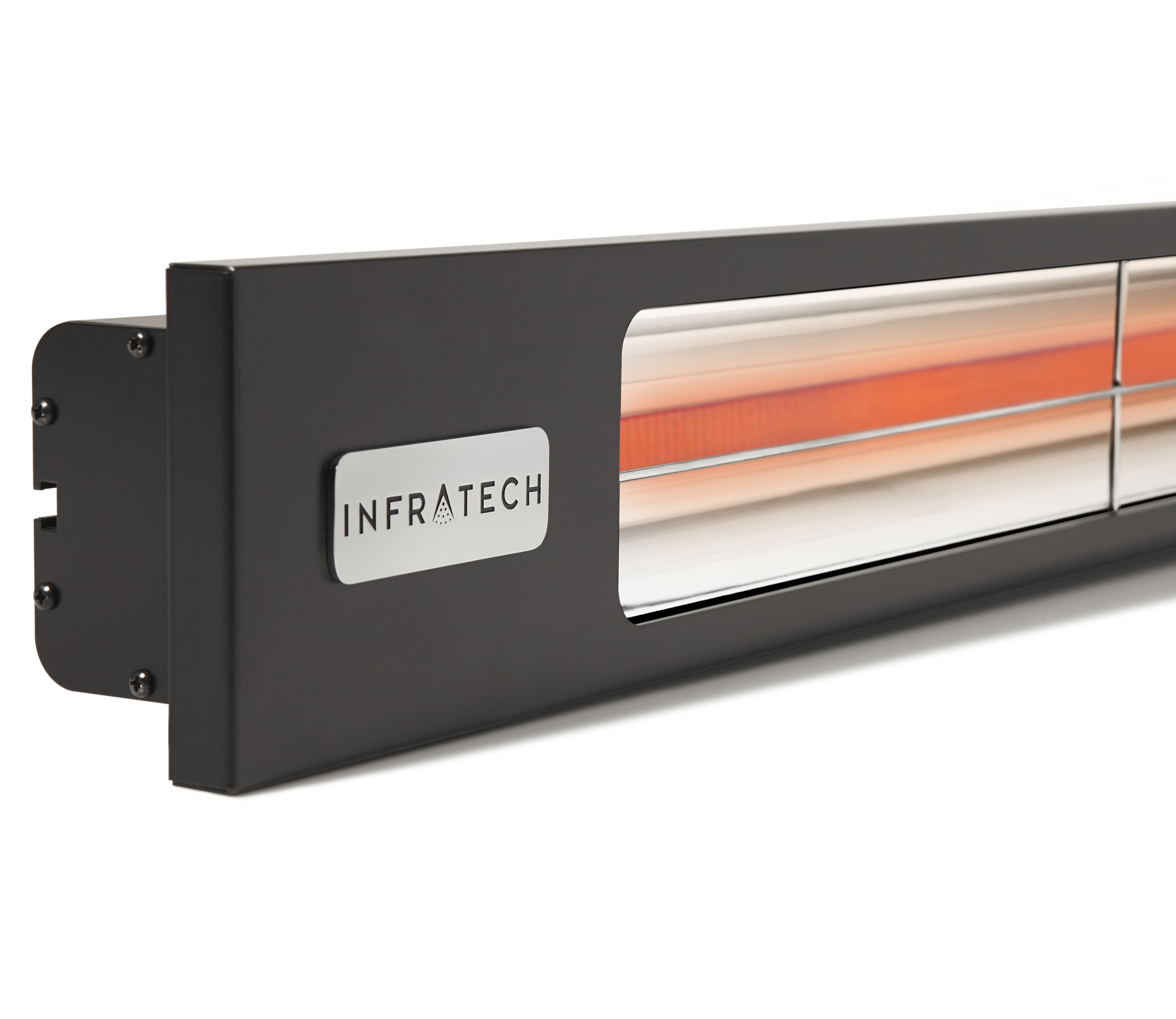

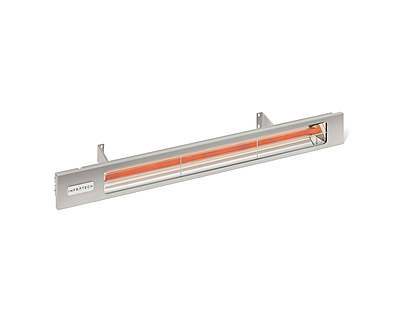

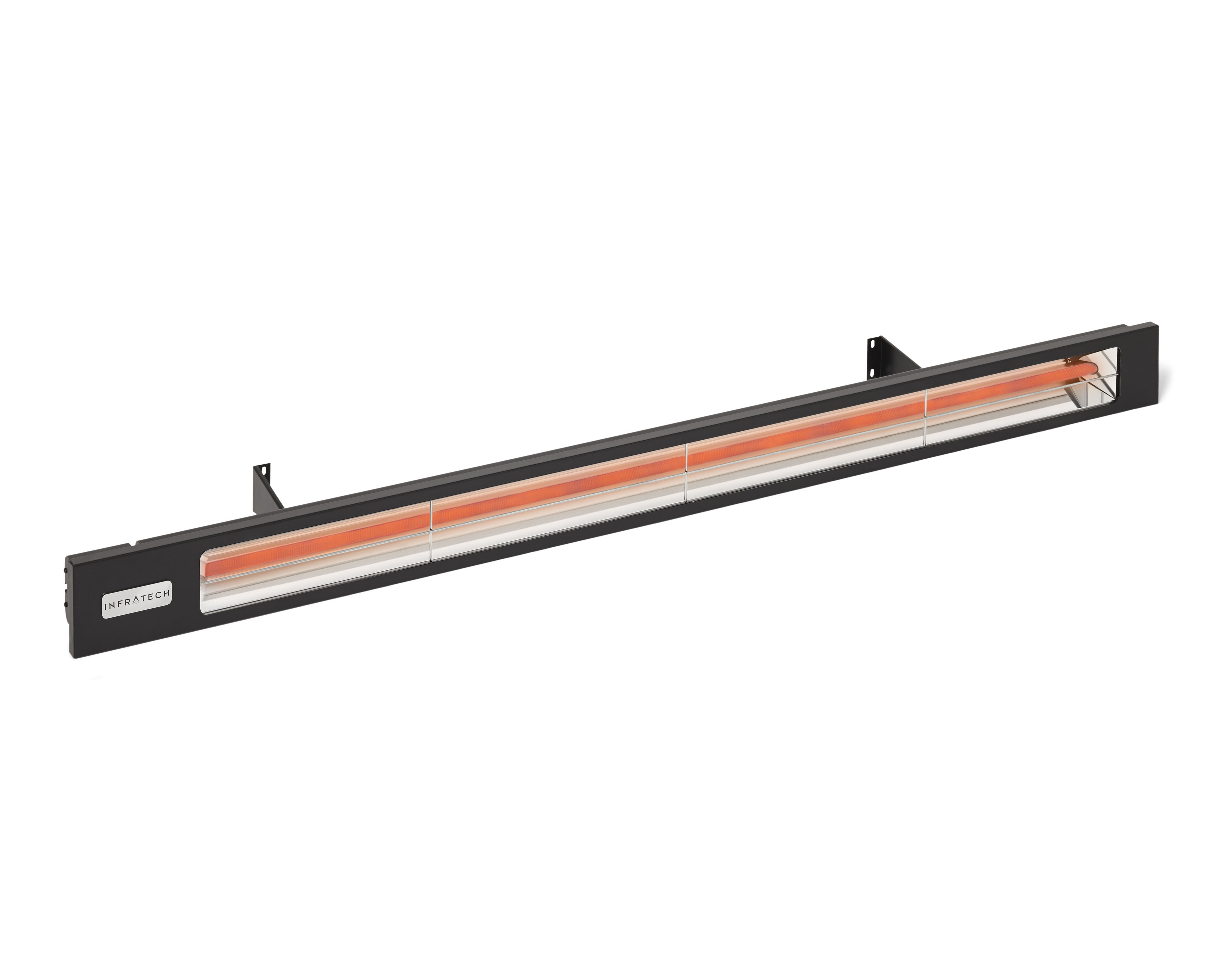

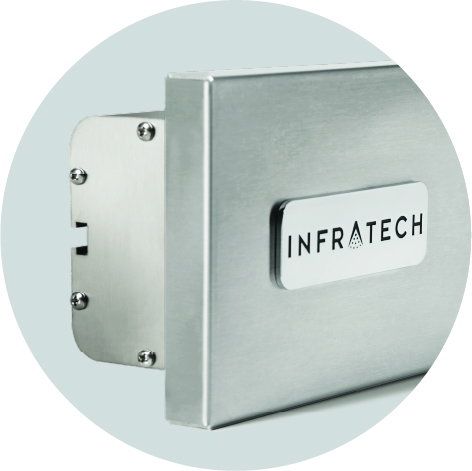

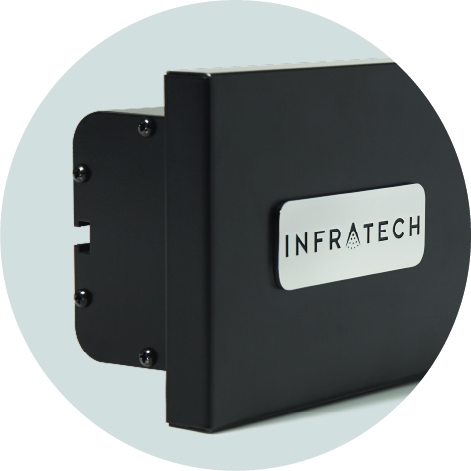

The SL-Series comes standard in a stainless hue anodized aluminum finish. It can also be ordered in All Black Shadow finish. To order, add “BL” to the part number.

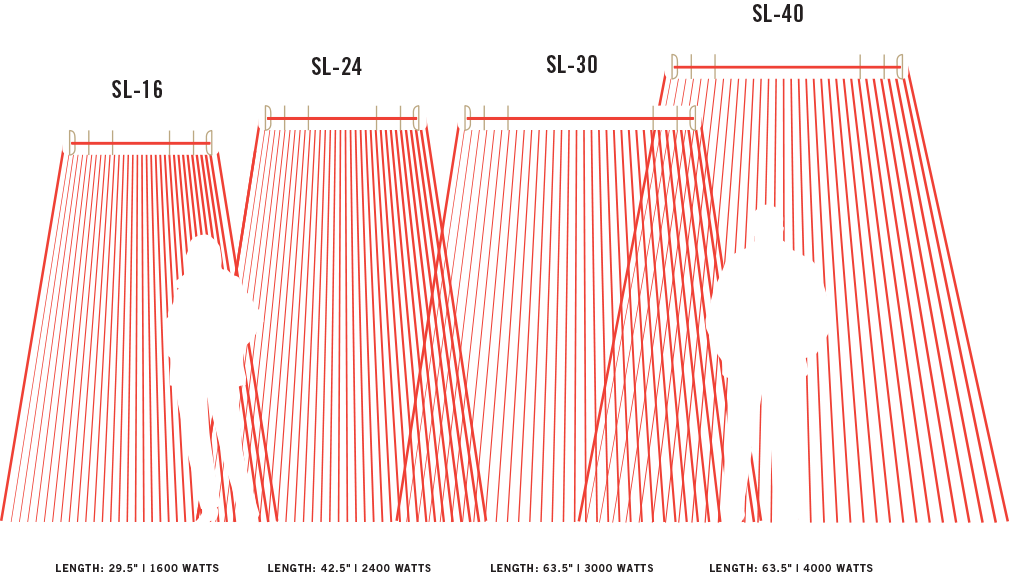

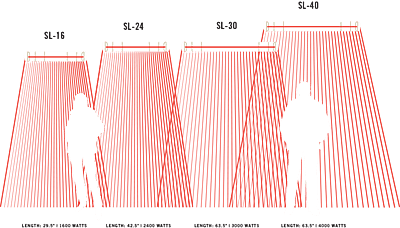

coverage area
Different spaces have different needs. You may require multiple heaters in order to properly heat the areas noted below. Contact us to learn which model is right for you. To find out more about which heating solution is right for your needs, click here to get started.
Note: Indoor or well-protected environments will generally exceed average coverage areas. Heaters can provide less than average coverage in extremely cold/windy conditions.
mounting options

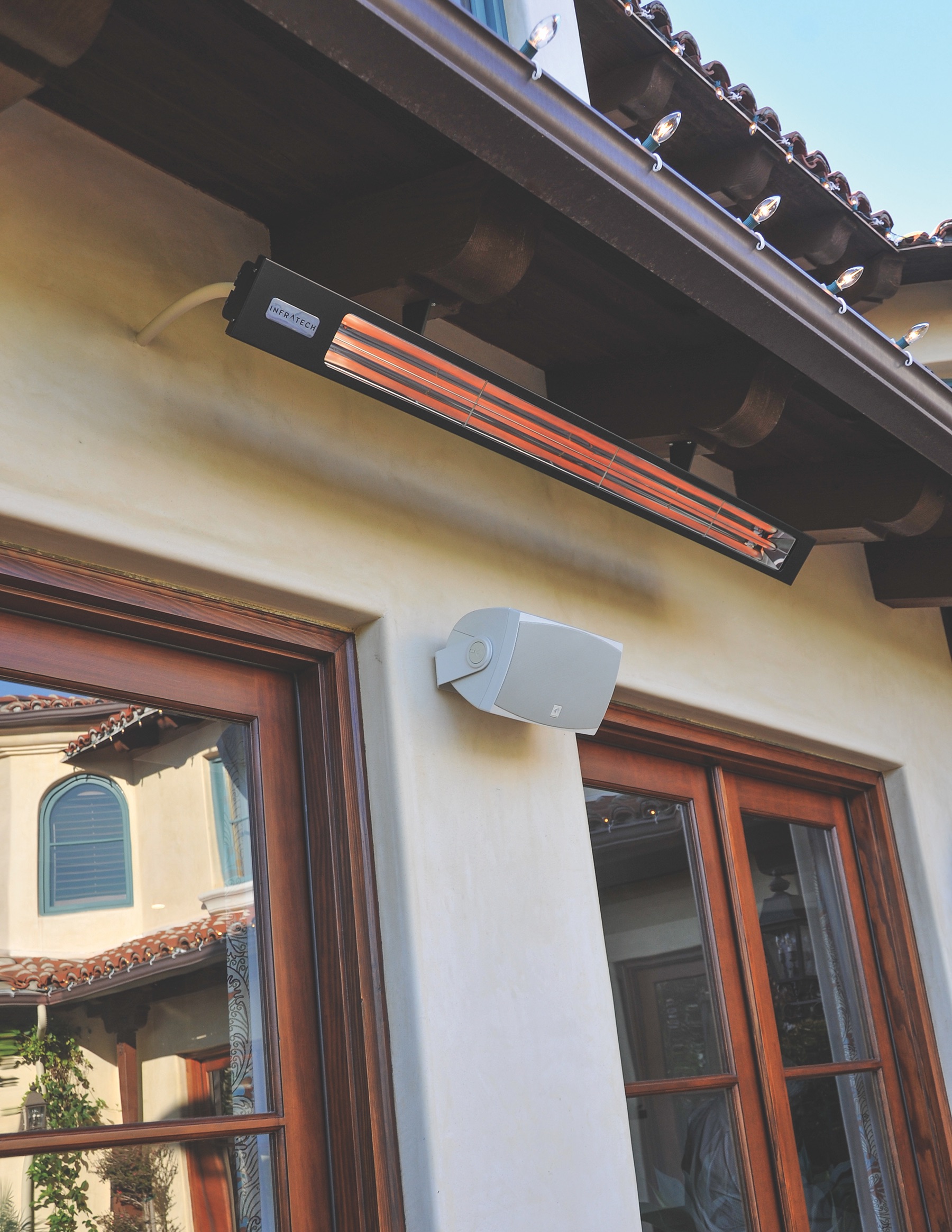

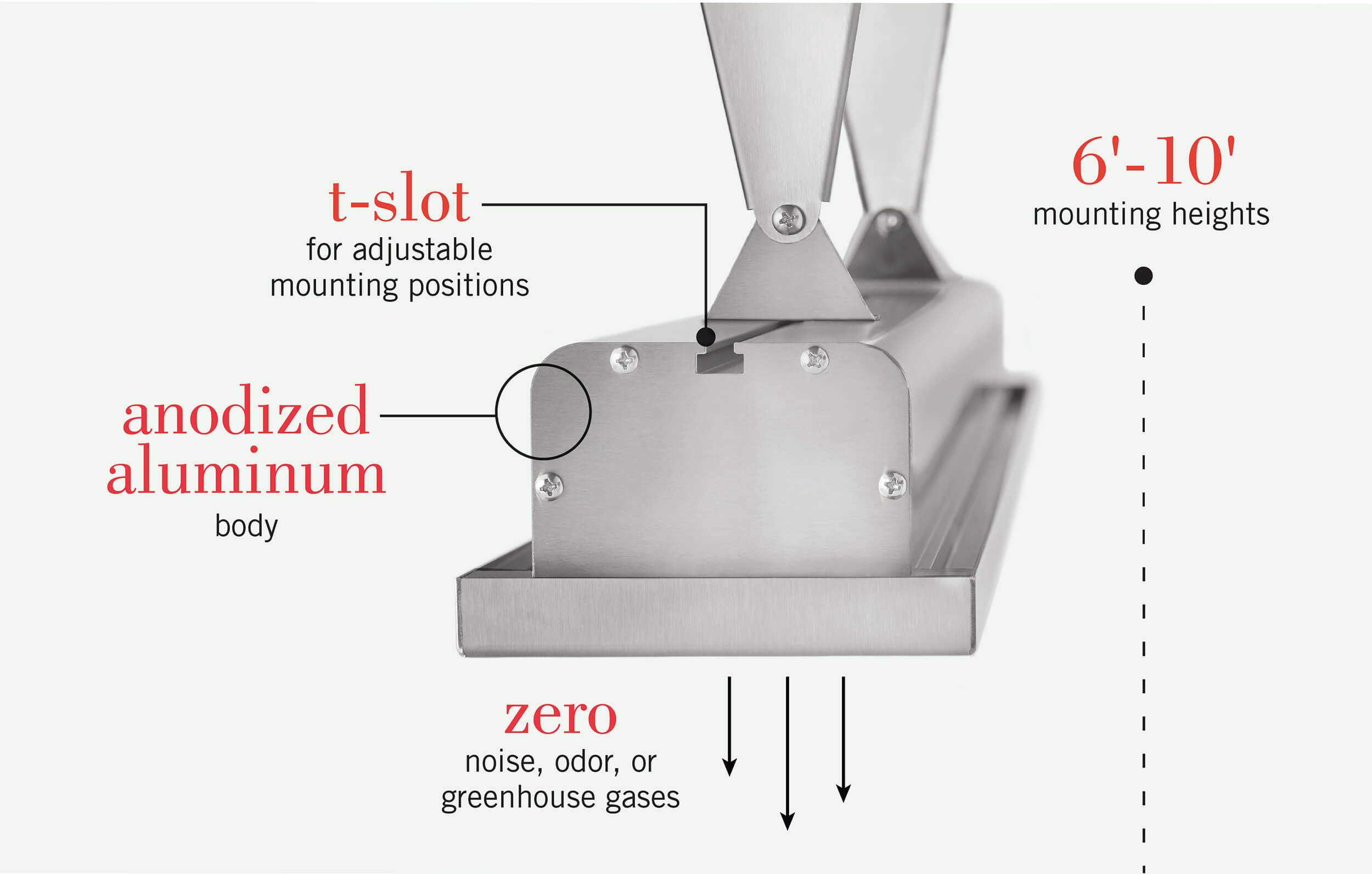

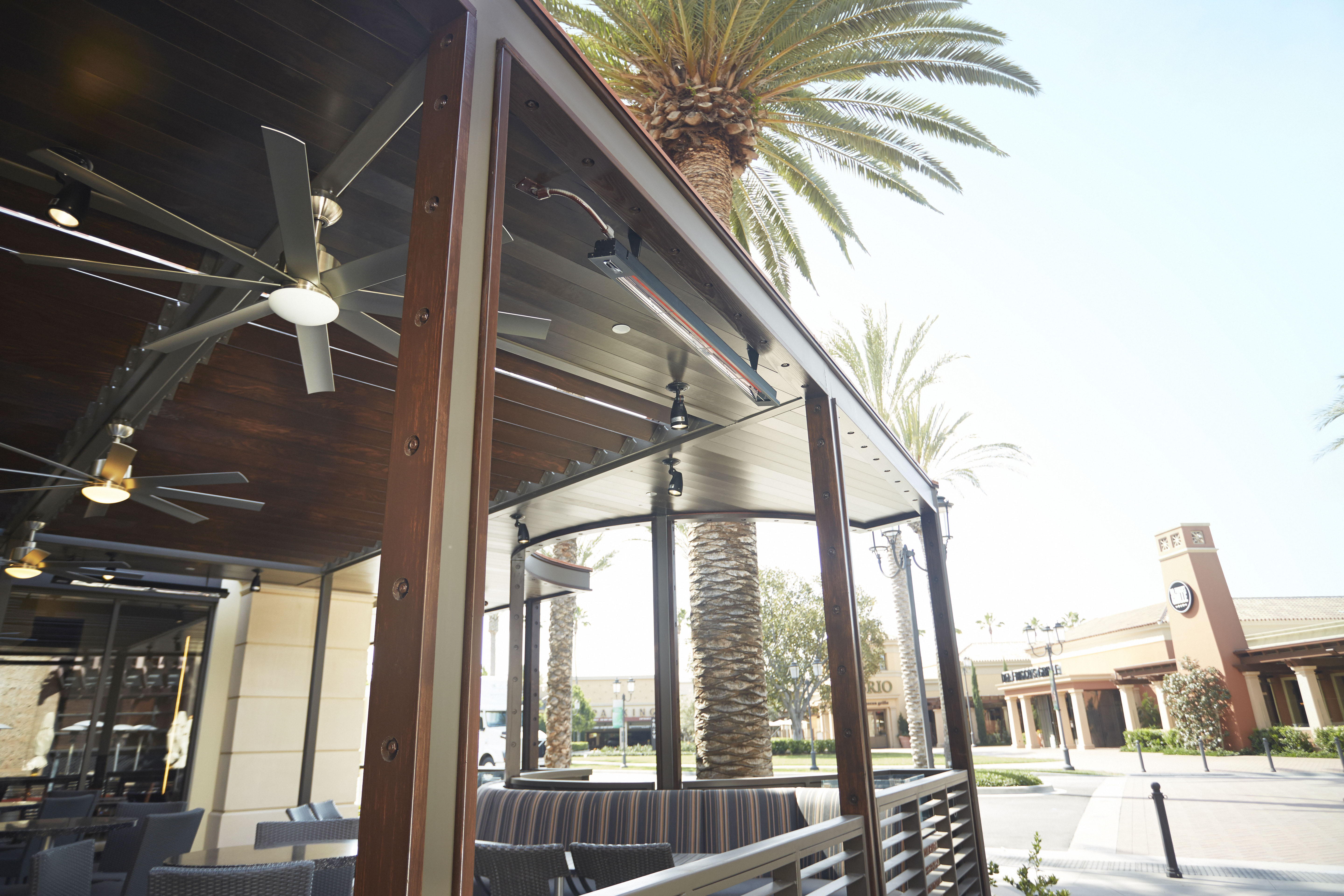

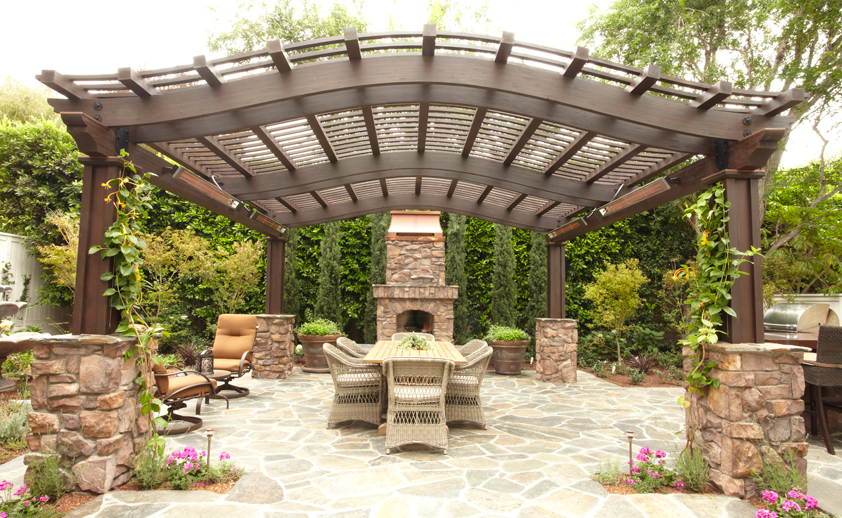

Our low profile heaters are suitable for outdoor installations and offer a pleasing, streamlined look due to low clearance requirements. SL-Series heaters are ideal for wall or ceiling mount applications.
control options
Enjoy a wide range of control options – from our exclusive smart home integration offering to our new Universal Control Panel, which enables you to use the dimmers of your choice along with remote functionality via mobile device or smart home assistant.
| VALUE CONTROLS | CUSTOM CONTROLS |
 ON/OFF SWITCH  INPUT REGULATOR |  SOLID STATE CONTROL PACKAGES  HOME MANAGEMENT SYSTEMS  UNIVERSAL CONTROL PACKAGES |
MODEL | LENGTH | WATTS | AMPS | CONTROL OPTIONS | ||
| ON/OFF SWITCH | INPUT REGULATOR | CUSTOM CONTROLS | ||||
| SL-1612 | 29.5" | 1,600 | 13.3 | • | • | |
| SL-1624 | 29.5" | 1,600 | 6.7 | • | • | • |
| SL-2424 | 42.5" | 2,400 | 10 | • | • | • |
| SL-3024 | 63.5" | 3,000 | 12.5 | • | • | • |
| SL-4024 | 63.5" | 4,000 | 16.7 | • | • |
