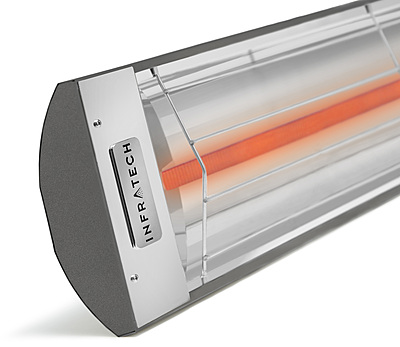

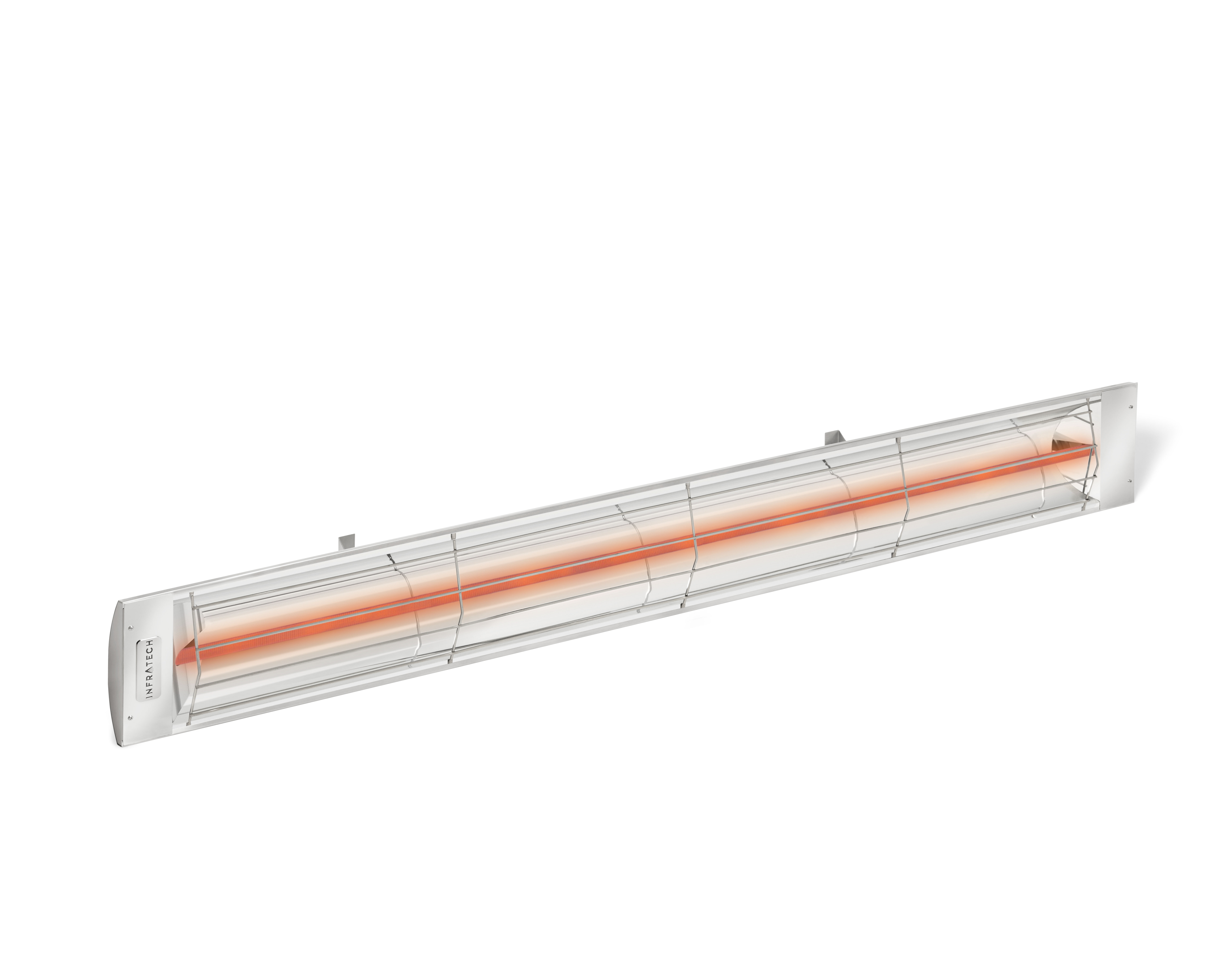

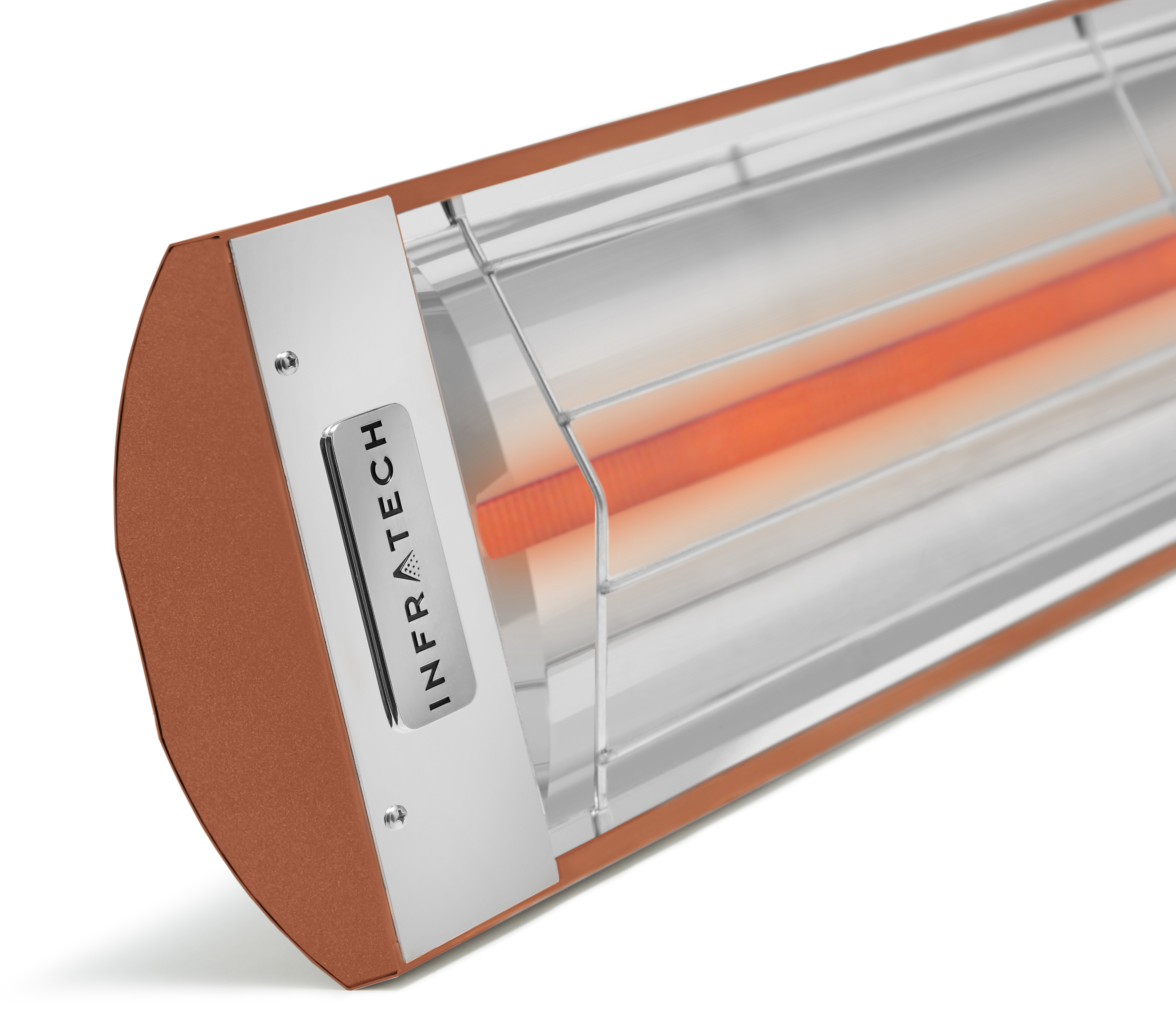

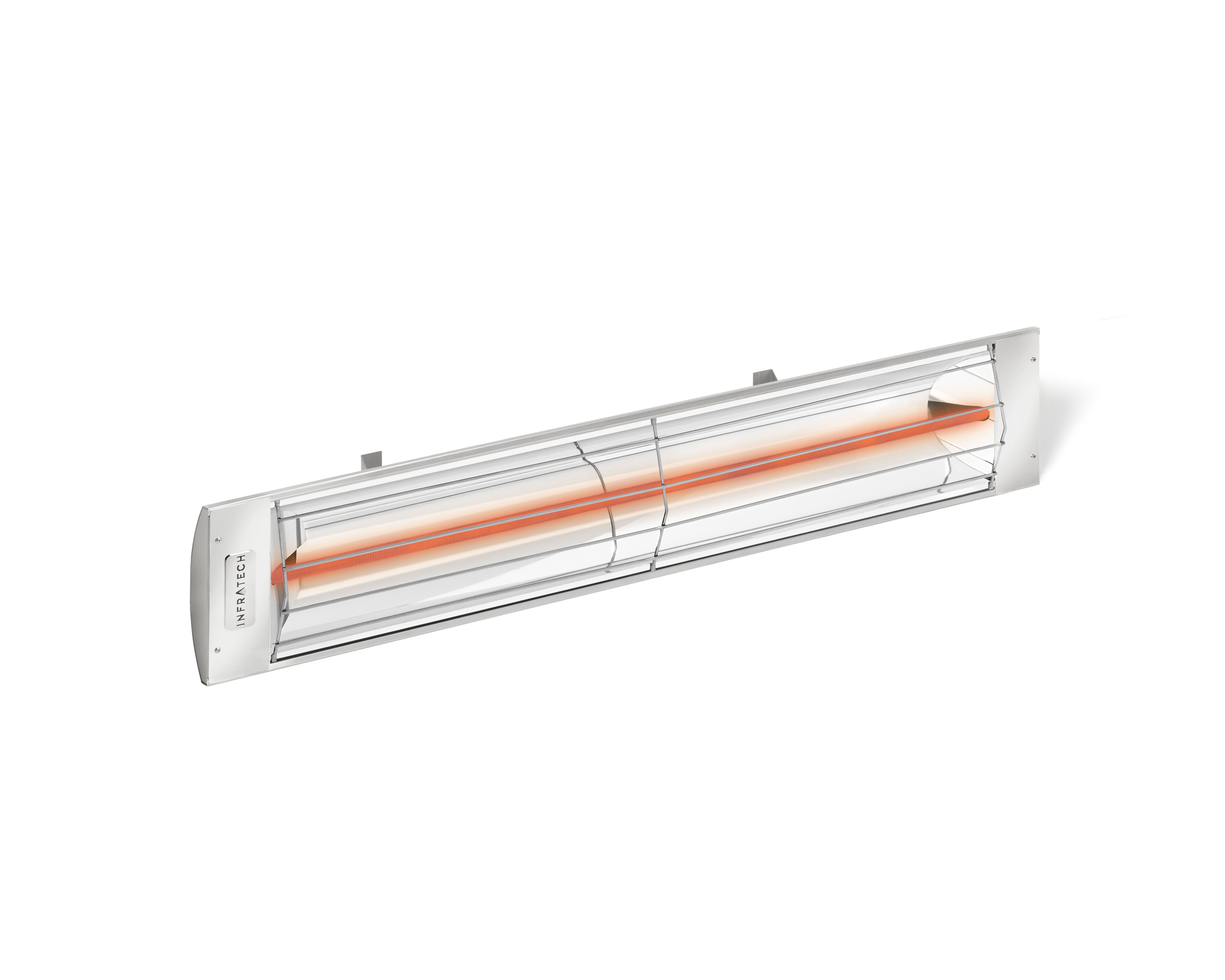

C-Series Single Element Infratech Heaters
Designer-friendly profiles. Marine-grade durability for even longer-lasting performance.
Extend the lifespan of your Infratech heater in climates with exposure to saltwater and other extreme elements with our new Marine UpGrade. It combines the designer-friendly profiles of our products with our most durable, high-grade anti-corrosive 316 stainless steel construction. While all Infratech heaters feature corrosion-resistant 304 stainless steel, 316 is a highly metallic element that offers enhanced protection and enduring style in coastal, alpine, windy, humid and other demanding conditions. The flush mount frame is also offered in this option to support our most popular installation choice.
Our C-Series fixtures are ideal for locations with mounting heights of 6-10 feet, where their sleek design blends seamlessly with the surrounding décor.
Note: Indoor or well-protected environments will generally exceed average coverage areas. Heaters can provide less than average coverage in extremely cold/windy conditions.
control options
Enjoy a wide range of control options – from our exclusive smart home integration offering to our new Universal Control Panel, which enables you to use the dimmers of your choice along with remote functionality via mobile device or smart home assistant.
VALUE CONTROLS CUSTOM CONTROLS
ON/OFF SWITCH
INPUT REGULATOR
SOLID STATE CONTROL PACKAGES
HOME MANAGEMENT SYSTEMS
UNIVERSAL CONTROL PACKAGES

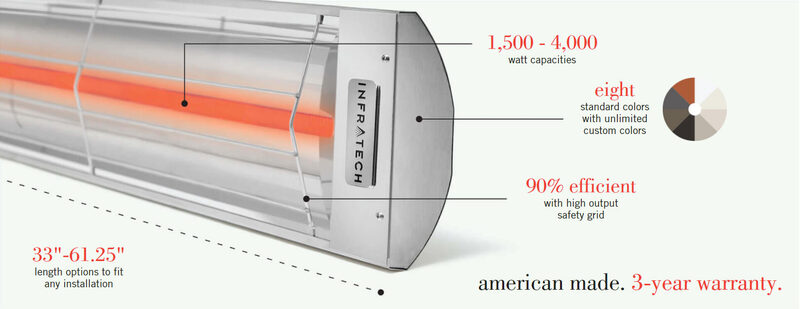

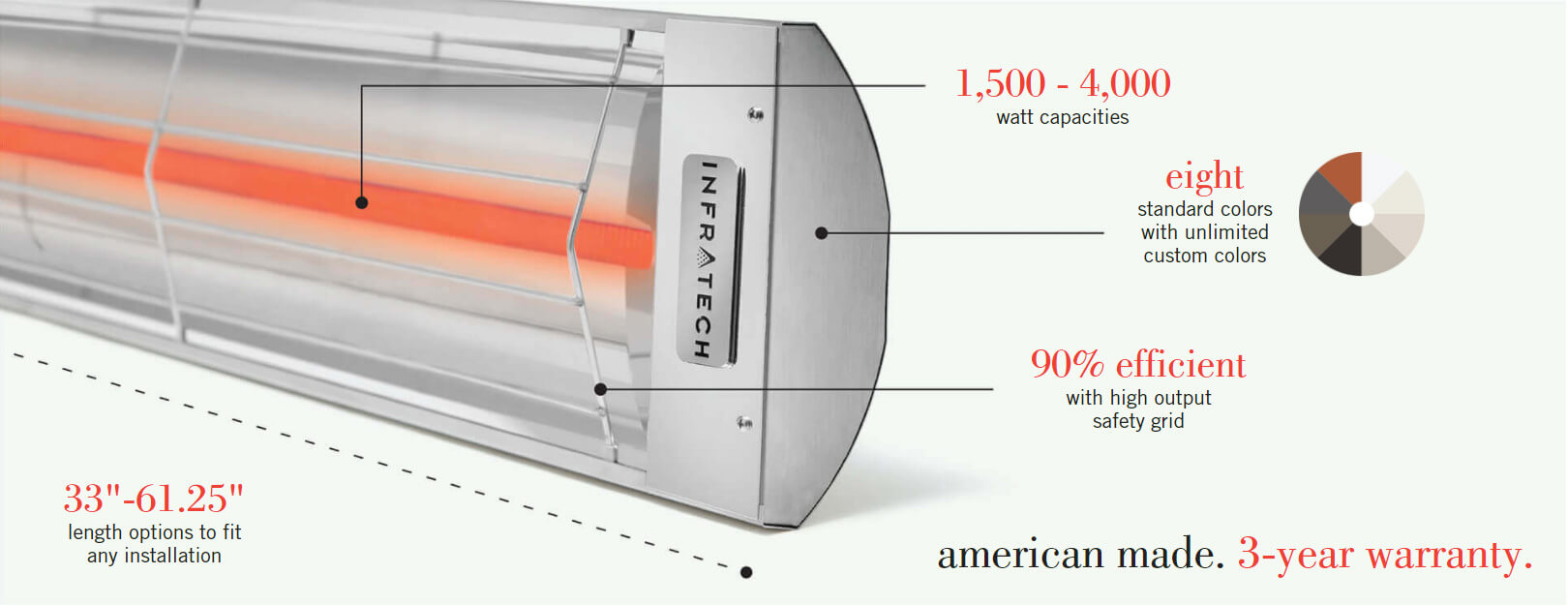

MODEL LENGTH WATTS AMPS CONTROL OPTIONS ON/OFF SWITCH INPUT REGULATOR CUSTOM CONTROLS C-1512 33” 1,500 12.5 • • C-1524 33” 1,500 6.3 • • • C-2024 39” 2,000 8.3 • • • C-2524 39” 2,500 10.4 • • • C-3024 61.25” 3,000 12.5 • • • C-4024 61.25” 4,000 16.7 • •
Enjoy a wide range of control options – from our exclusive smart home integration offering to our new Universal Control Panel, which enables you to use the dimmers of your choice along with remote functionality via mobile device or smart home assistant.
| VALUE CONTROLS | CUSTOM CONTROLS |
ON/OFF SWITCH INPUT REGULATOR | SOLID STATE CONTROL PACKAGES HOME MANAGEMENT SYSTEMS UNIVERSAL CONTROL PACKAGES |
MODEL | LENGTH | WATTS | AMPS | CONTROL OPTIONS | ||
| ON/OFF SWITCH | INPUT REGULATOR | CUSTOM CONTROLS | ||||
| C-1512 | 33” | 1,500 | 12.5 | • | • | |
| C-1524 | 33” | 1,500 | 6.3 | • | • | • |
| C-2024 | 39” | 2,000 | 8.3 | • | • | • |
| C-2524 | 39” | 2,500 | 10.4 | • | • | • |
| C-3024 | 61.25” | 3,000 | 12.5 | • | • | • |
| C-4024 | 61.25” | 4,000 | 16.7 | • | • |
color options

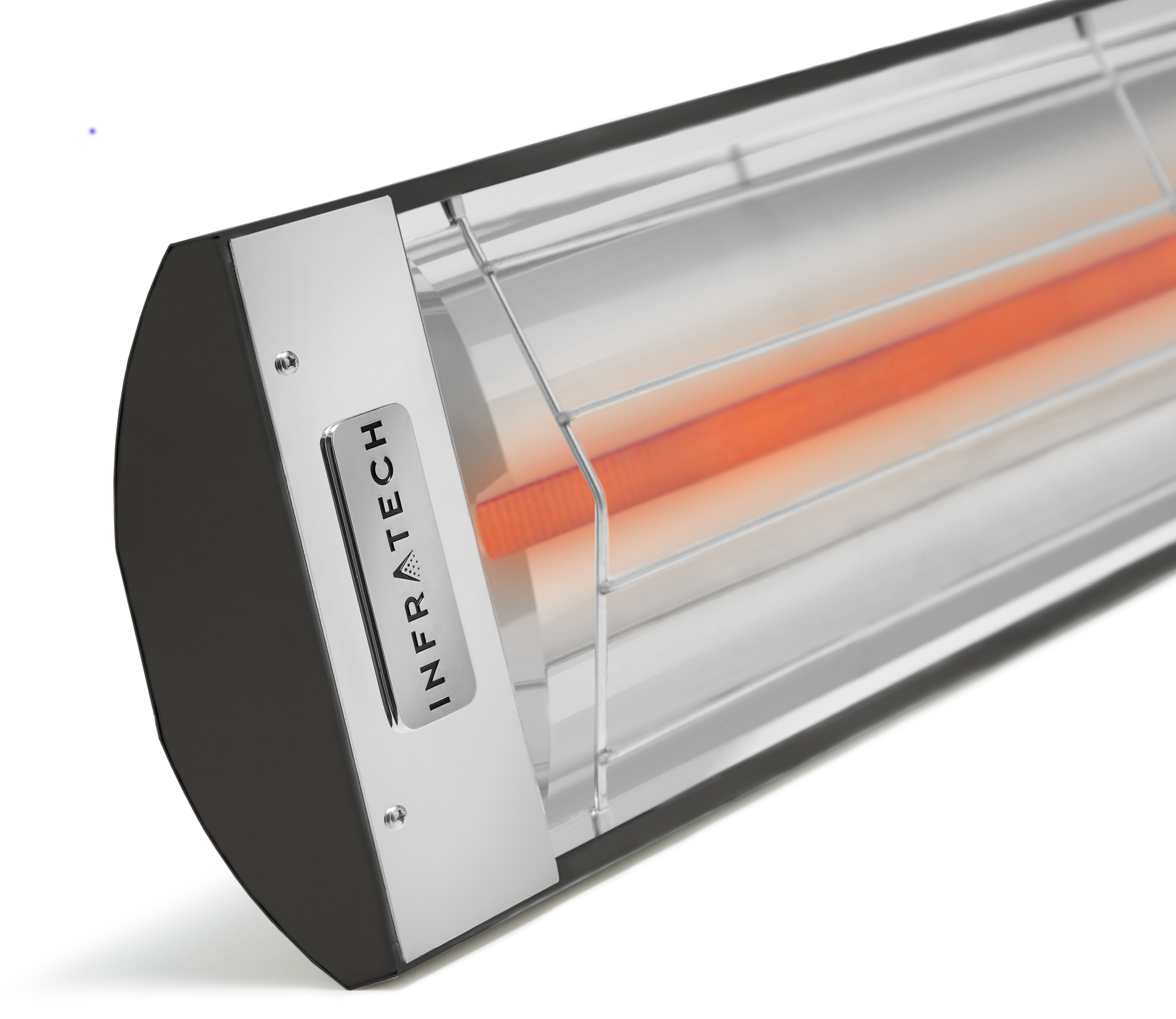

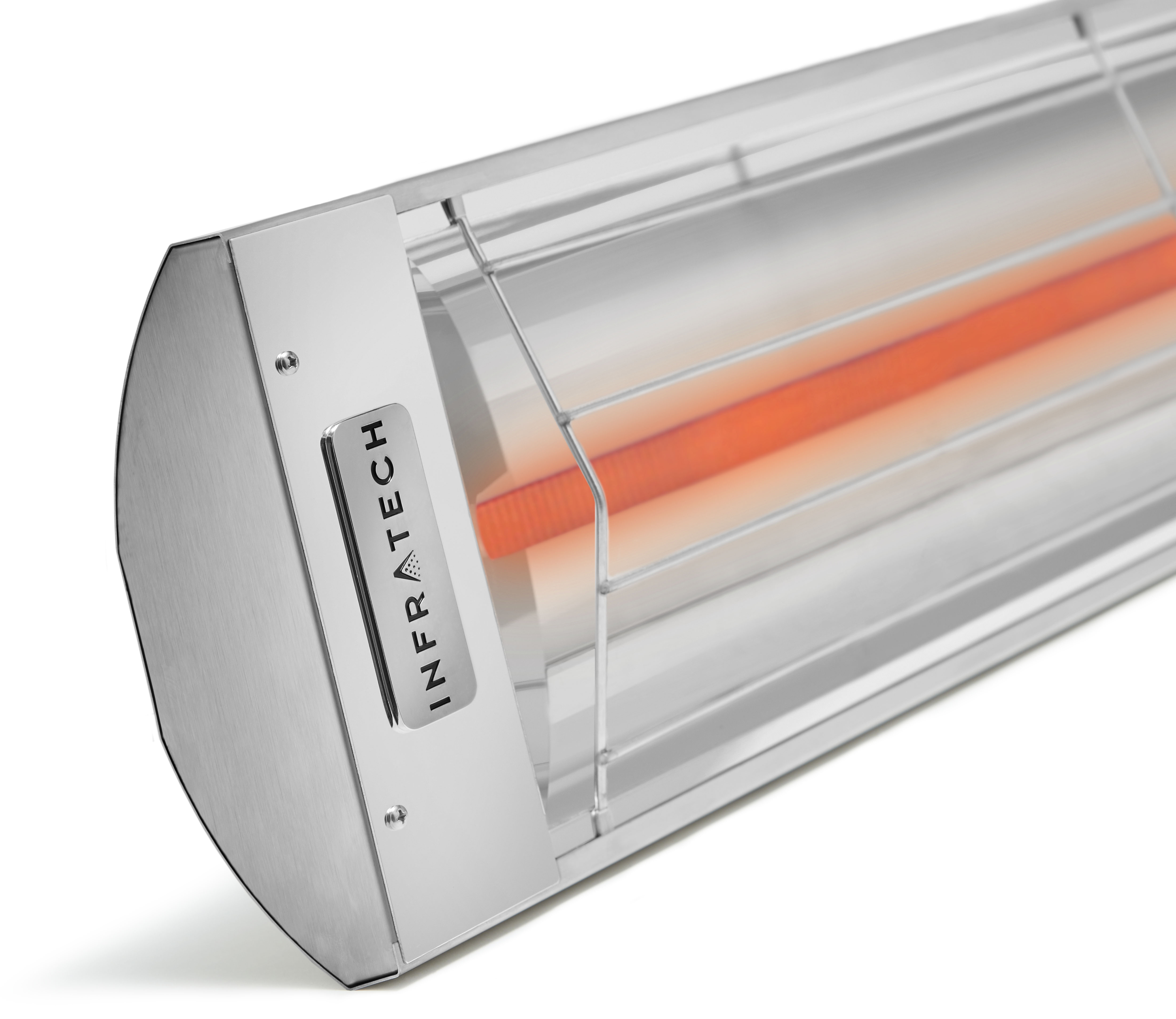

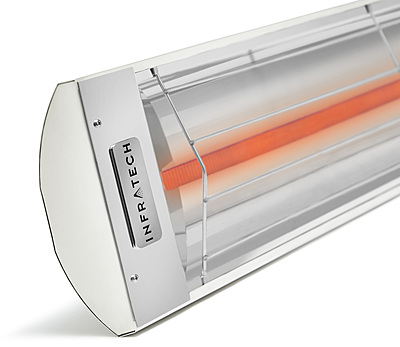

C-Series heaters are available in a range of colors, to coordinate with your interior or exterior environment. Choose from brushed stainless steel or eight standard color finish options. Please note, our color options are available in Infratech’s signature 304 stainless steel.
WHITE
BISCUIT
ALMOND
BEIGE
BRONZE
BLACK
GREY
COPPER
C-Series heaters are available in a range of colors, to coordinate with your interior or exterior environment. Choose from brushed stainless steel or eight standard color finish options. Please note, our color options are available in Infratech’s signature 304 stainless steel.
mounting options

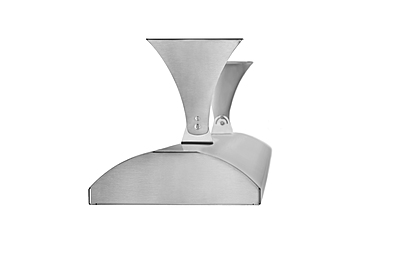

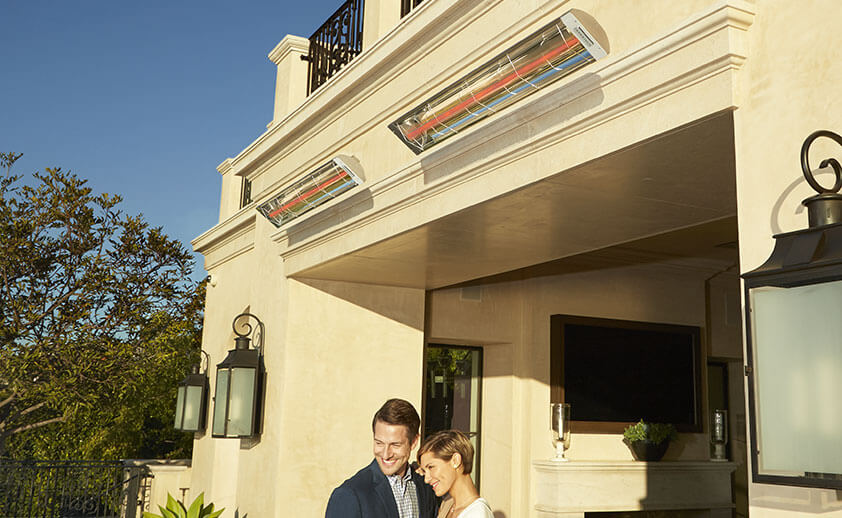

Infratech is the only outdoor comfort heat manufacturer to offer five distinct mounting choices — for the widest range of options in the industry. Our low profile heaters are suitable for outdoor installations and offer a pleasing, streamlined look due to low clearance requirements. Infratech heaters may be flush mounted into a non-sloped ceiling using our optional flush mount frame, may be mounted to a high, vaulted or uneven ceiling using our Drop Pole installation, or may be mounted to a wall, ceiling or pole mounted. C-Series heaters are ideal for wall, ceiling or Drop Pole Mount applications.
Infratech is the only outdoor comfort heat manufacturer to offer five distinct mounting choices — for the widest range of options in the industry. Our low profile heaters are suitable for outdoor installations and offer a pleasing, streamlined look due to low clearance requirements. Infratech heaters may be flush mounted into a non-sloped ceiling using our optional flush mount frame, may be mounted to a high, vaulted or uneven ceiling using our Drop Pole installation, or may be mounted to a wall, ceiling or pole mounted. C-Series heaters are ideal for wall, ceiling or Drop Pole Mount applications.
